Product Description

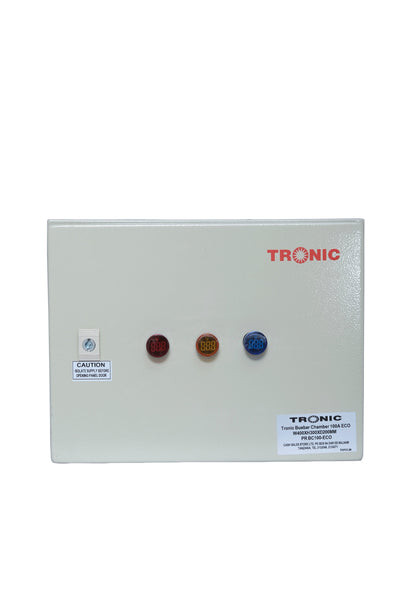

The Tronic Busbar Chamber 100A 6 Way (BC 1006) is a durable, wall-mounted electrical distribution unit designed for safe and efficient power distribution. Constructed from 1.6mm thick cold-rolled commercial (CRCA) sheet steel with an epoxy powder-coated finish, it features tin-plated ETP-grade copper busbars supported by DMC (dough molding compound) insulators. Rated at 100A TPN (Three Phase + Neutral), it accommodates up to six outgoing circuits, making it suitable for residential, commercial, or industrial applications, such as construction sites or multi-story buildings.

Product Attributes

• Material: 1.6mm CRCA sheet steel (enclosure), ETP-grade copper (busbars), DMC insulators
• Dimensions: Approx. 17.7 x 14.2 x 5.9 inches (450 x 360 x 150 mm)
• Weight: Approx. 8–12 kg
• Features:
  • 100A TPN (Three Phase + Neutral) rating
  • 6-way outgoing configuration for circuit distribution
  • Epoxy powder-coated finish (RAL7035 matt grey) for corrosion resistance
  • Fully rated neutral busbar
  • Detachable top and bottom end plates for easy extension
  • Conforms to IS:8623/IEC 60439 (panel assemblies) and IS:2147/IEC 60529 (protection degree)
• Accessories: Optional copper connecting links for busbar extension
• Color: Grey (epoxy powder-coated)
• Capacity: 100A, 6 outgoing ways

Best Uses

• Distributing power in residential, commercial, or industrial environments
• Supporting electrical systems in construction sites or multi-story complexes
• Expanding power distribution with add-on modules
