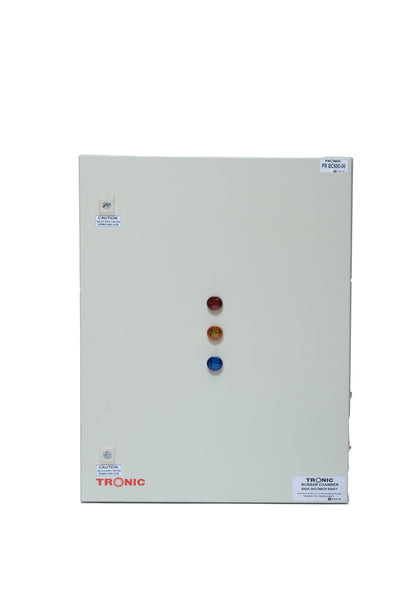

Tronic Busbar Chamber 400A 6Way BC 4006

Product Description

The Tronic Busbar Chamber 400A 6 Way (BC 4006) is a robust, wall-mounted electrical distribution unit engineered for safe and efficient power distribution in high-demand environments. Constructed from 1.6mm thick cold-rolled commercial (CRCA) sheet steel with an epoxy powder-coated finish, it features tin-plated ETP-grade copper busbars supported by DMC (dough molding compound) insulators. Rated at 400A TPN (Three Phase + Neutral), it supports up to six outgoing circuits, making it ideal for commercial, industrial, or large residential applications, such as factories, construction sites, or multi-story complexes.

Product Attributes

• Material: 1.6mm CRCA sheet steel (enclosure), ETP-grade copper (busbars), DMC insulators
• Dimensions: Approx. 27.6 x 18.9 x 7.9 inches (700 x 480 x 200 mm)
• Weight: Approx. 15–20 kg
• Features:
  • 400A TPN (Three Phase + Neutral) rating
  • 6-way outgoing configuration for circuit distribution
  • Epoxy powder-coated finish (RAL7035 matt grey) for corrosion resistance
  • Fully rated neutral busbar
  • Detachable top and bottom end plates for easy extension
  • Conforms to IS:8623/IEC 60439 (panel assemblies) and IS:2147/IEC 60529 (protection degree)
• Accessories: Optional copper connecting links for busbar extension
• Color: Grey (epoxy powder-coated)
• Capacity: 400A, 6 outgoing ways

Best Uses

• Power distribution in commercial buildings, industrial facilities, or large residential complexes
• Supporting electrical systems in factories, construction sites, or data centers
• Expanding power distribution with add-on modules for large-scale setups
